Less excavation and spoil
Ground is displaced by the screw rather than excavated for a full slab, which can reduce skips, wheelbarrowing and disruption.
Ground screw foundations in BH18
Ground Screw Installation in Broadstone
A strong, level garden-building base with far less digging, no concrete curing and a full 10-year JustBases guarantee.
Real Broadstone project
Less mess than a dug base
Frame-ready straight away
Full 10-year guarantee
Ground screws in Broadstone
A cleaner way to support your Broadstone garden room
Ground screws create a precise grid of steel supports without digging out the entire base area. That means less spoil, fewer heavy materials moving through the garden and no wait for concrete to cure.
We recently installed a 7m × 4m ground screw foundation in Broadstone using 1.25-metre hot-dip galvanised steel screws. It was prepared for a timber-framed garden room and demonstrates the same careful set-out and laser levelling we bring to every project.
Why customers choose them
- ●Garden rooms and home offices
- ●Timber studios and summerhouses
- ●Sloping or landscaped gardens
- ●Projects needing a quick, tidy base
What we take care of
- ●Matching the grid to your building
- ●Choosing the right screw specification
- ●Planning the route into the garden
- ●Checking every finished support level
Three easy steps
From your idea to a frame-ready base
Start with the building size and your Broadstone postcode. Craig will guide everything else.
- 1
Tell us your plan
Call or send a short enquiry with the approximate building size and where it will go.
- 2
Receive advice and a quote
We listen, answer your questions and visit if seeing the garden will help us price it properly.
- 3
We install the supports
The team sets out, machine-installs and laser-levels the screws ready for the agreed frame.
Easy to start, free to ask
Tell us what you want to build
Share the building size and your Broadstone postcode, or simply call Craig. You do not need drawings or technical details to start—we will guide you through anything else we need.
- Free, no-obligation quote with a clear written price.
- Ready for the frame straight away with no concrete curing delay.
- Full 10-year JustBases guarantee on our workmanship, screws and materials.
Talk to Craig about your ground screw base
Not sure where to begin? Craig will listen to what you need and explain the easiest next step.
Online quote requests are normally answered within 24 hours, excluding weekends.
Request your free quote
Just give us your contact details and a short description of what you want to build. We will guide you through the rest.
Your enquiry
Ground screw installation in Broadstone
Local knowledge, handled by us
Broadstone experience, explained simply
Broadstone gardens can include both sandy and clayey ground, sometimes changing over a short distance. You do not need to work out which type you have before calling us.
We use the building details, what we see on site and the response during installation to make sensible decisions. Craig will explain the recommendation clearly and let you know if another base would suit the garden better.
What we check for you
- 1 We plan the support points around the building frame
- 2 We select the screw specification for the job
- 3 We monitor installation and finished height
- 4 We leave a level grid ready for framing
Why choose ground screws?
A cleaner, faster foundation for your garden building
Level base on a fall
Head heights and the supporting frame can accommodate moderate level changes without building up a large mass of concrete.
Ready for the frame
There is no concrete curing period, so the correctly specified frame can follow once the foundation has been checked and accepted.
Ventilated construction
A suspended timber floor can retain airflow beneath the building when the frame, membranes and perimeter details are designed correctly.
Targeted footprint
The foundation is concentrated at designed support points instead of covering the whole garden-room footprint with a slab.
Long service potential
The hot-dip galvanised screws we use have an expected in-ground lifespan beyond 50 years when correctly specified for the site.
Common applications
What can a ground screw base support?
From garden rooms and offices to sheds and studios, ground screws create a strong, level base without filling your garden with excavated soil or wet concrete.
Garden rooms and offices
Timber-framed rooms, studios and workspaces of many common sizes.
Log cabins and summerhouses
Suspended bases that keep the building level and separated from direct ground contact.
Sheds and workshops
From lighter storage buildings to more substantial timber workshops.
Decking and garden structures
Point foundations for raised decks, pergolas and similar structures where the connection detail is suitable.
Our Broadstone installation process
Accurate set-out, powerful machinery and laser-checked levels
These images show the simple sequence behind the base: supports positioned for the building, screws installed with purpose-built machinery and the completed grid ready for its frame.
-

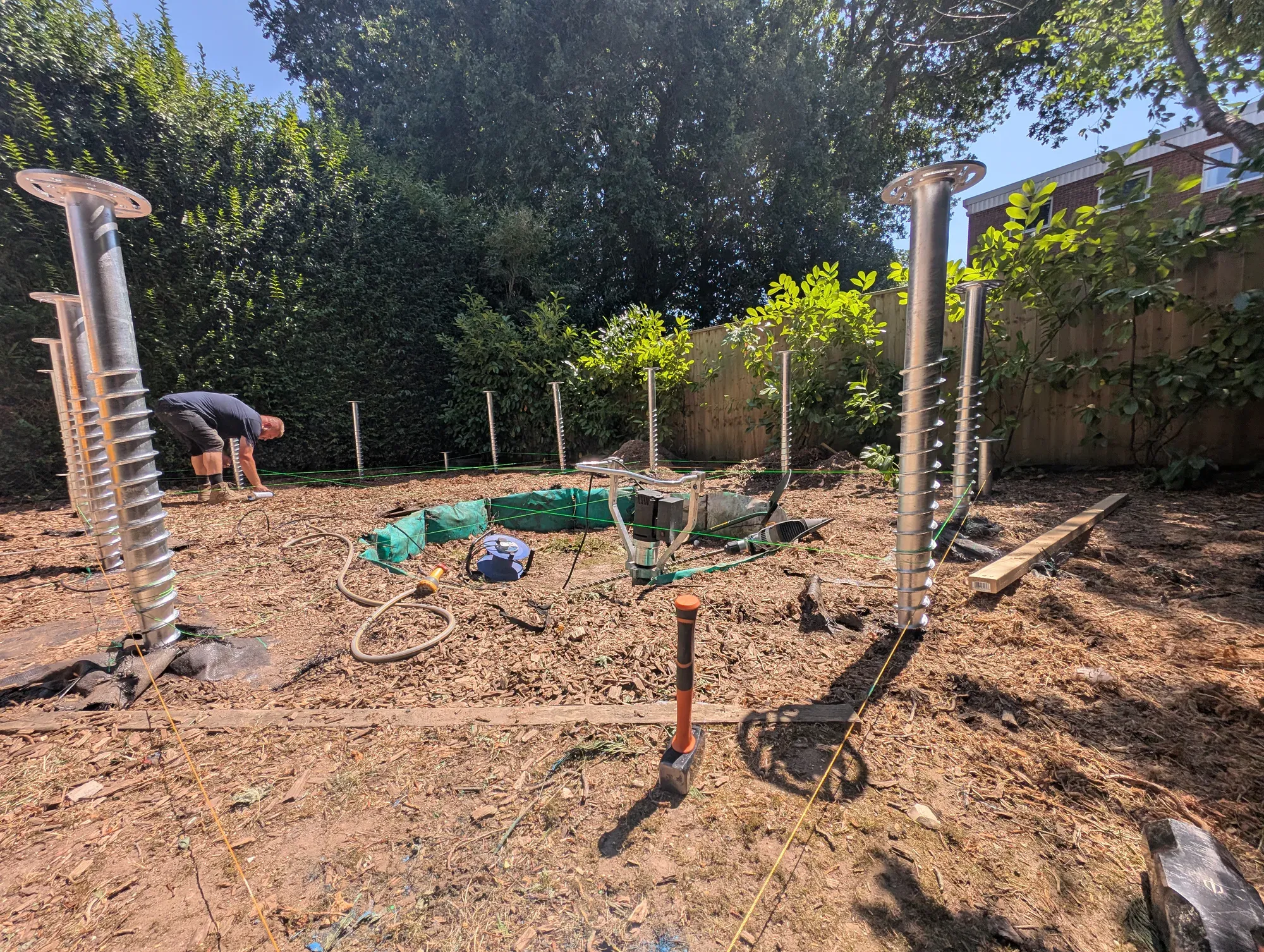

1 Careful measurements establish the support grid.
Position the supports
We mark and square the footprint, then place the screws into pilot positions that match the planned timber frame.
-

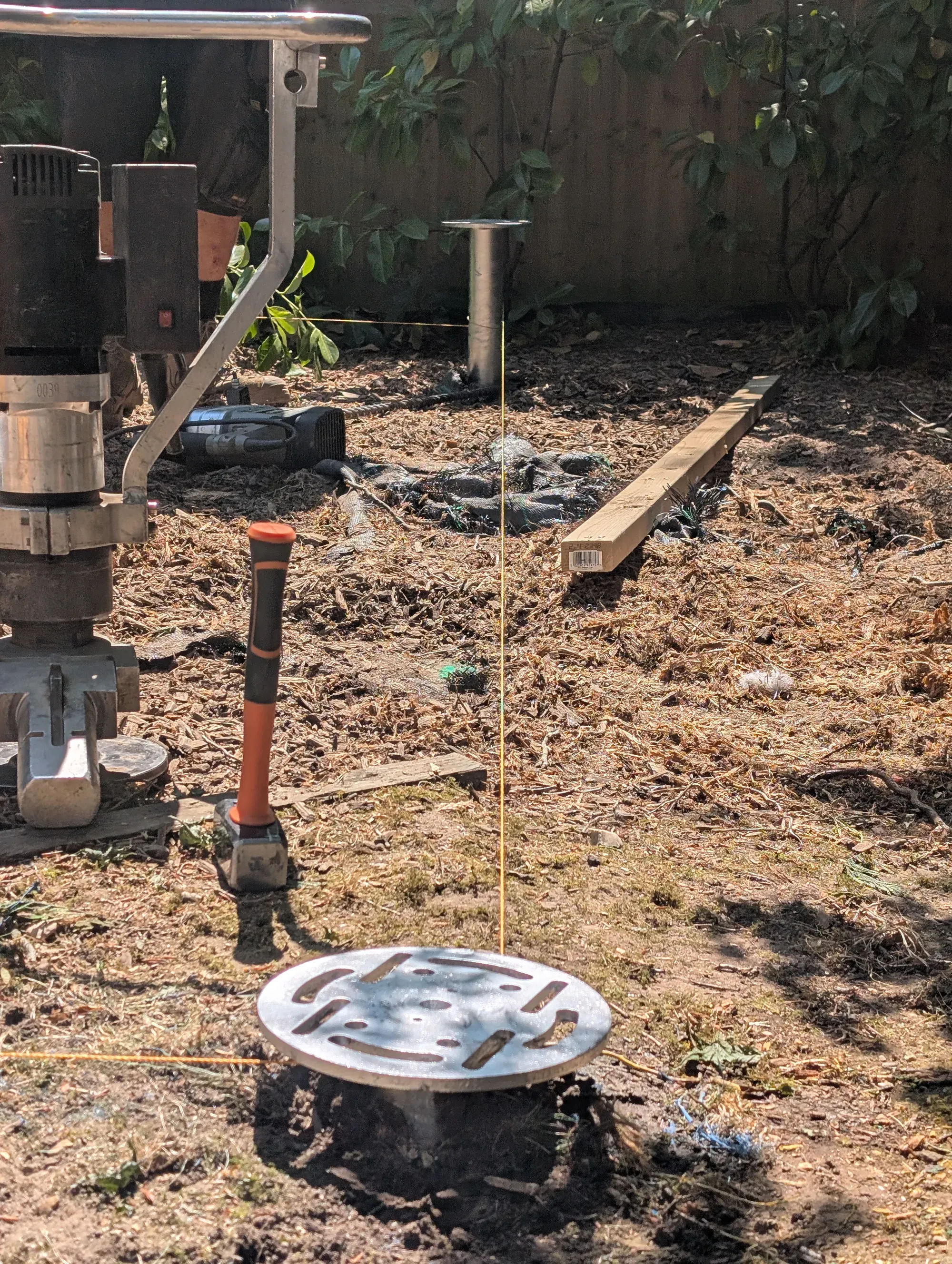

2 The machine provides the torque; the laser keeps the grid level.
Machine-install and level
A purpose-built high-torque driver installs the 1.25-metre screws while our laser controls the finished heights.
-
3 Artist’s impression Artist's impression of the planned 7m × 4m garden room above the supported frame.
Fit the building frame
Once the support grid is complete, the timber frame can be attached without waiting for concrete to cure.
Transparent guide prices
Broadstone ground screw price guide
Guide prices for common garden-building sizes, based on a standard installation. The two options make it clear whether JustBases or another supplier is providing the frame.
| Building size | Installed ground screws Frame by others | Installed screws + timber frame |
|---|---|---|
| 8' x 6' 2.4m x 1.8m 48 ft² / 4.46 m² | £1,180 | £1,650 |
| 10' x 8' 3m x 2.4m 80 ft² / 7.43 m² | £1,280 | £1,750 |
| 12' x 10' 3.6m x 3m 120 ft² / 11.15 m² | £1,400 | £1,850 |
| 16' x 10' 4.8m x 3m 160 ft² / 14.86 m² | £1,500 | £2,050 |
| 20' x 10' 6m x 3m 200 ft² / 18.58 m² | £1,600 | £2,450 |
These are guide prices for standard installations. Your free written quotation confirms the exact price for your building and garden, including any support frame supplied by JustBases. Larger or unusual foundations are priced individually.
A simpler way to build the base
Why choose ground screws instead of a dug base?
Our Broadstone project shows the practical difference: a measured support grid instead of a full-area excavation, with the frame able to follow immediately.
| Factor | Ground screw foundation | Excavated concrete or aggregate base |
|---|---|---|
| Excavation | Localised at each support point | Usually removes soil across most or all of the footprint |
| Spoil removal | Often minimal | Typically requires disposal or reuse of excavated material |
| Sloping ground | Can support a suspended level frame | May need deeper digging or built-up edges |
| Use after installation | No concrete curing time | Concrete elements require an appropriate curing period |
| Unexpected obstacles | The support plan can often be adjusted | Wider digging can cause more garden disruption |
| Best suited to | Compatible framed buildings on verified ground | Projects needing a continuous slab or where screw installation is unsuitable |
Craig will recommend the foundation that makes sense for your building and garden. JustBases also installs other base types when ground screws are not the best fit.
Easy to arrange
Narrow access does not automatically rule out ground screws
A Broadstone postcode, the building size and a short description are enough to begin. If you already have a photo of the side gate or route, it can help us quote, but it is optional.
Ground screw work avoids many of the bulk deliveries needed for a dug base. We plan the equipment route and can pop out to look if access is unusual.
Helpful details if you have them
- Your BH18 postcode
- Building type and approximate size
- Where it will sit in the garden
- An access photo, if handy
- Preferred installation timing
Built to last, backed in writing
A long-life foundation, backed by a full guarantee
We use hot-dip galvanised steel ground screws with an expected in-ground lifespan beyond 50 years in suitable conditions.
JustBases gives a full 10-year guarantee covering our workmanship and the ground screws and foundation materials we supply, clearly recorded in writing.
10
Years — full JustBases guarantee
- ✓10 years on JustBases workmanship
- ✓10 years on screws and materials supplied by JustBases
- ✓Written scope tied to your quotation
- ✓Installation records retained with the project
Helpful local information
Helpful planning links for Broadstone
Many garden buildings fall within permitted development rules. Any planning question normally relates to the finished building—its size, height, position and use—rather than the ground screws by themselves.
Broadstone has conservation areas, protected trees and a neighbourhood plan, so the local links are useful if your property has a special designation. You can still ask us for a base quote while you check.
You do not need to settle every planning detail before speaking with us. The links are here if they help, and Craig is happy to explain which parts relate to the base.
Planning Portal: outbuildings National permitted-development overview BCP Council planning hub Local applications and guidance BCP conservation areas Broadstone conservation-area information BCP tree preservation orders TPO map and consent guidance Broadstone Neighbourhood Plan Made 27 June 2018 Check long-term flood risk Government address-level service
Still choosing your garden building?
Garden-room companies around Broadstone
If you are still choosing the building, these nearby businesses may help you compare options. Tell us the approximate size and we can start discussing the foundation before every detail is finalised.
Poole Builders ↗ Garden rooms; website lists Broadstone in its service area GW Landscaping+ ↗ Poole-based garden studios and landscaping Judge Carpentry ↗ Poole carpentry business serving Broadstone and surrounding areas
Independent links for convenience; inclusion is not a JustBases endorsement.
Customer feedback
What customers say about our work
Selected feedback about our workmanship, reliability and service. The review source and publication date are shown on each card.
★★★★★
“Very pleased with all aspects of the work done. Put a lot of effort into doing an excellent job.”
Verified customer, BH18
Checkatrade · 6 June 2019
Work listed by the source: Concrete slab base for log cabin
★★★★★
“Very professional company, responded very quickly to calls and quotes. Job is a very good standard.”
Verified customer, BH18
Checkatrade · 30 May 2019
Work listed by the source: Base for shed/summer house
★★★★★
“If you're looking for reliable, friendly and quality tradesmen to do groundwork look no further than Craig and his team. Don't be dissatisfied by shabby work from cheap quotes, pay that tiny bit extra and get a professional job done well. I would recommend them without hesitation.”
Paul Leister, Broadstone
MyBuilder · 3 May 2024
Work listed by the source: 6m x 4m Concrete shed base
Questions? We are happy to help
Broadstone ground screw FAQs
The guide prices on this page are a useful starting point. Send the building size and BH18 postcode for a free, no-obligation written quote.
If your question is not covered, call Craig on 01202 039753.
Ground screw bases across Broadstone and nearby
We install around Broadstone, Clarendon, Springdale, Pine Springs, Broadstone Heath and neighbouring parts of Poole and east Dorset.
